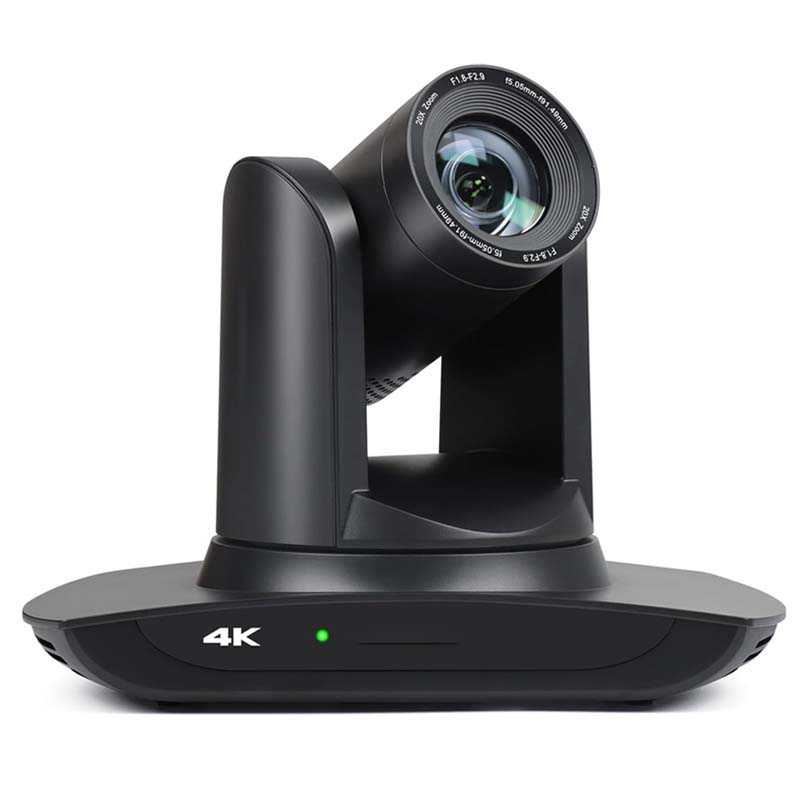

We integrated the best-in-class Sony 1/1.28” sensor into the 4K PTZ camera, crystal sharp even when zoomed-in, blurry proof and future proof. It comes with our Next-Gen enhanced artificial intelligence tracking algorithm, which enabes it to lock on a person. No matter how or where you move, it will always follow you smoothly and precisely. You can set the gesture-controlled zoom to 2x, 3x, 4x or 5x easily. With 116 degree Wide Angle, each participant can be seen clearly during the meeting.
Gestures enable AI auto-tracking and 5X digital zoom: ‘OK’ to AI-tracking ON and enter multi-human tracking, ‘V’ to enter solo-tracking. ‘L’ to zoom in (in solo-tracking), ‘One’ to zoom out (in solo-tracking), ‘Good’ to enter multi-human tracking, ‘Palm’ to AI- tracking OFF.
Specifications
| Model | LIB-HD4KAI |
| Sensor | 1/2.8”SONY CMOS |
| Effective pixel | 8.29 mega pixel |
| Video output pixel | 4K-30/25,2K-30/25,1080p-30/25 |
| Zoom | 5x digital zoom |
| Lens | f=2.2mm |
| Aperture | F1.8 |
| Horizontal angle | 107° |
| Diagonal angle | 116° |
| Video output | USB 2.0 |
| Video resolution | 4K (3840*2160) etc |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control temernal | RS-232,RS485 |
| Shutter | 1/30s~1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | MJPEG, YUV |
| Horizontal Rotation | 350°(±175°) |
| Vertical Rotation | 180°(±90°) |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |
