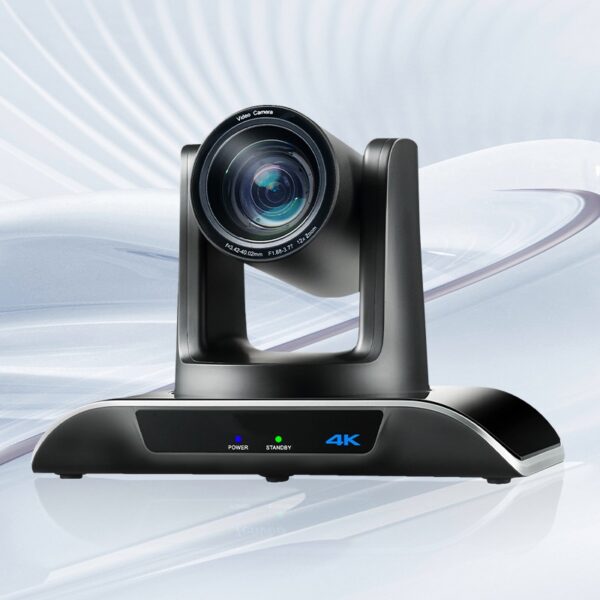

LIB-HD12U4K – USB3.0 & HDMI PTZ Camera

LIB-HD12U4K PTZ video camera is equipped with 1/2.8 inch SONY CMOS image sensor with 4K output resolution and a high dynamic image quality at 60 fps. The superior optical zoom lens and wide dynamic range technology deliver vivid vision even in low light, backlight and the extreme contrast of brightness and darkness. The camera applies highly efficient motor controller to achieve high-speed, silent and precise movements. LIB-HD12U4K supports USB3.0 and HDMI interfaces allowing two simultaneous image output and are compatible with most video software. LIB-HD12U4K is applicable for lecture, videoconferencing, online education, broadcasting, etc.

LIB HD12U4K

With 12x Optical Zoom, LIB-HD12U4K PTZ provides unrivaled flexibility to adapt to any application scenarios by providing close-up shots with excellent detail.

LIB-HD12U4K features USB3.0 for connecting directly to Zoom, Teams, Webex and any app that support a USB UVC input. The additional HDMI opens a wide range of options witch HDMI workflows for transmitting uncompressed digital video signal almost without any delay.

LIB-HD12U4K features smooth, quiet and precise positioning with up to 255 preset position (10 preset position by IR remote controller) that can save pan, tilt, and zoom settings. Positioning at the touch of a button can be performed at a range of speeds from very slow to very fast while retaining pin-point accuracy.



Category:

Specifications

Model LIB-HD12U4K
Sensor 1/2.8”SONY CMOS
Effective pixel 8.29 mega pixel
Video output pixel 4K@25/30,1080p@60/50/30/25fps, 720p@60/50/30/25fps
Zoom 12x optical zoom
Lens f=3.42-40.02mm
Aperture F1.88-3.77
Horizontal angle 80.56(W)-7.89°(T)
Video output USB 3.0, HDMI
Video resolution 4K (3840*2160) etc
Siginal standard NTSC/PAL
Preset position 255
Control Interface RS-232, RS485, USB
Shutter  1/30s~1/10000s, auto
Baud Rate 2400/4800/38400/9600bps
Control protocol VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocol UVC1.1
Minimal Illumination 0.1Lux
SNR ≥ 50dB
Video encoding format H.264, H.265, MJPEG, YUV2
Horizontal Rotation 350°(±175°)
Vertical Rotation 180°(90°)
Power supply DC 12V/2A
Power comsumption 12W
