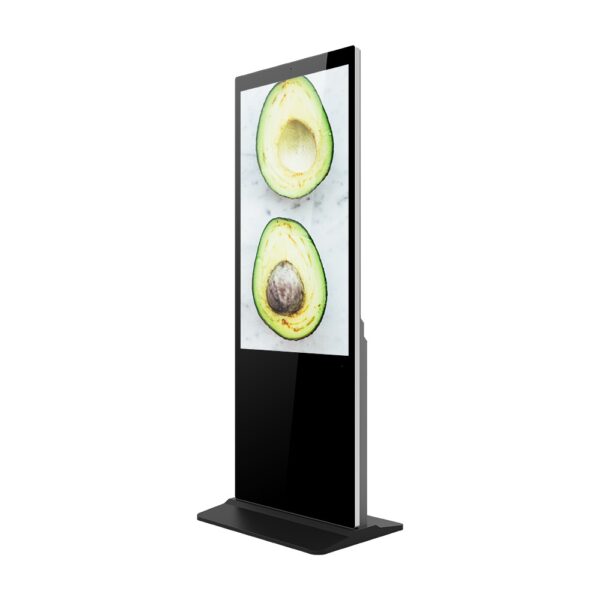

The LIB-DF Series is the Floor Standing Digital Signage product. LIB-DF Series includes screen sizes 43 inch, 49 inch, 55 inch, 65 inch. You can arbitrarily combine multiple split screen modes. Support to insert multiple formats of materials such as pictures, text, video, weather, time, website and so on at the same time.
SPECIFICATION
| Model | LIB-DF43 | LIB-DF49 | LIB-DF55 | LIB-DF65 |
| Screen size | 43 inch | 49 inch | 55 inch | 65 inch |
| Panel Purchase Standard | A Grade | |||
| Light Source | WLED | |||
| Display Area | 941x530mm | 1073x604mm | 1209.6 x 680.4mm | 1430.5×805.5mm |
| Resolution | 1920 x 1080pixels | |||
| Contrast ratio | 1200:1（typ.) | |||
| Response Time | 8(Typ.)(G to G)(ms) | |||
| Viewing Angles | 178°(H)/178°(V) | |||
| Refresh rate | 60Hz | |||
| Brightness | 380cd/m²(typ.) | 450cd/m²(typ.) | ||
| Life Time | 30,000hrs(min.) | |||
| Operating System | Windows XP , Windows 7/8/10 | |||
| RAM | 4GB | |||
| Storage | 128GB (SSD) | |||
| Touch Type | Infrared Touch,Capacitive Touch,No Touch | |||
| Max. power | ≤90W | ≤120W | ≤160W | ≤160W |
| Standby power | <0.5W | |||
| Voltage | 100V~240V,50-60HZ | |||
| I/O interface | 1 x Audio OUT, 1 x VGA, 1 x HDMI, 1 x Audio IN, 1 x WIFI, 1 x LAN-RJ45, 2 x USB 2.0, 2 x USB 3.0 | |||
| Maximum usage time | 7×24 hours/day | |||
| Working Temperature | 0℃～40℃ | |||
| Working Humidity | 20%〜85%RH No condensation | |||
| Product Dimensions (mm) | 607.4x1790x85 | 692.4x1790x85 | 766.4x1880x84.36 | 920x2025x59.7 |
| Packaging Dimensions (mm) | TBD | |||
| Net Weight (kg) | TBD | |||
| Shell material | Sheet metal | |||
| Shell color | Aluminum Profile Silver/Black | |||
| Accessories | Power cable, Operation manual, Warranty card | |||
