| Feature | Specification (LIB‑CD86) |
|---|---|
| Series | LIB‑CD Series – Advertising Display |
| Screen Size | 86 inches |
| Orientation | Landscape / Portrait |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 350 cd/m² (typical) |
| Contrast Ratio | 1100 : 1 – 1500 : 1 (typical) |
| Viewing Angle (H/V) | 178° |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Lifespan | ~50,000 hours |
| Display Colors | 1.07 billion (8‑bit) |
| Input Ports | HDMI ×1, VGA ×1, DVI ×1, USB 2.0 ×1, RS‑232 ×1, Audio ×1, Earphone Out ×1 |
| Built-in Speakers | 2 × 15 W (max) |
| Power Consumption | Max 320 W |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temp./Humidity | 0 °C – 40 °C / 10% – 90% RH |
| Product Dimensions (mm) | 1951.56 × 1123.7 × 78 |
| VESA Mount Size | 800 × 400 mm |
| Accessories Included | Power cable, remote control, user manual |
COMMERCIAL DISPLAY

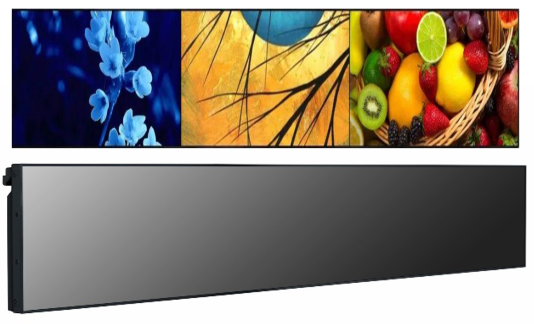

LIB-D8603
LIB-D8603 is a high quality LCD display meticulously, which designed and detailed by Libre image. The screen resolution of 3840*600 allows displaying vivid, intuitive images. Support for all mainstream video playback, image/video/scroll subtitles.
